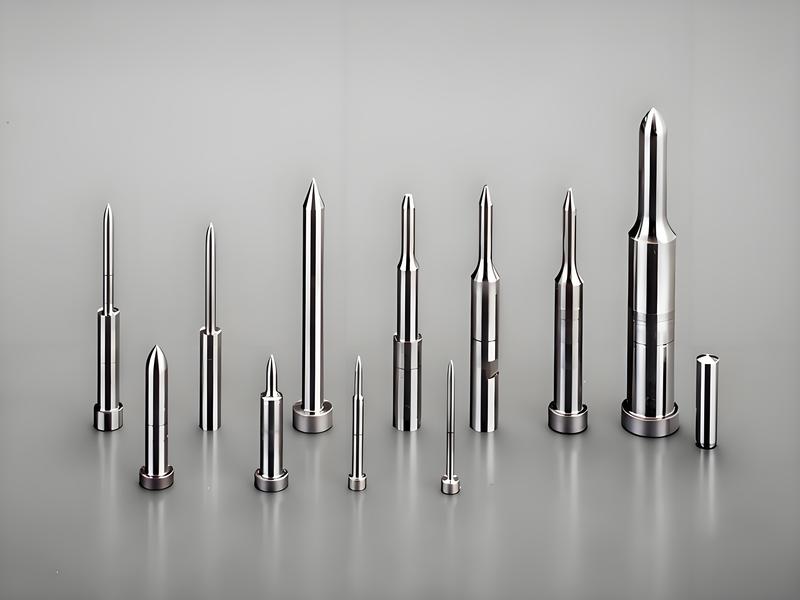

Guide pins: Precision positioning key for molds, small but powerful, helping efficient production

Although the guide pins in mold accessories seem small, they play a vital role in the precise positioning and guidance of the mold. As one of the key details in the mold structure, the design and manufacture of the guide pins require strict consideration and fine polishing.

The main function of the guide pin is to ensure the precise alignment of the mold during the mold closing process and to guide the mold components to move along the predetermined trajectory. In the high-speed, high-pressure mold working environment, any slight deviation may lead to a decline in product quality or even damage to the mold. Therefore, the accuracy and durability of the guide pin have become important indicators to measure its performance.

In order to meet the high requirements of the mold for the pilot pin, manufacturers usually use high-strength and high-wear-resistant materials, such as high-quality alloy steel or hard alloy. These materials not only have good mechanical properties, but also can maintain stable dimensional accuracy and shape accuracy in harsh working environments. At the same time, the surface of the pilot pin will also undergo special treatments, such as quenching and carburizing, to improve its hardness and wear resistance and extend its service life.

During the assembly and use of the mold, the installation position and angle of the guide pin must be accurately calculated and adjusted. Once installed, the guide pin acts as a "compass" for the mold, guiding the mold components to move precisely along the predetermined path. This precise guiding effect not only improves the molding accuracy and stability of the mold, but also reduces the scrap rate and production costs.

In summary, the guide pins in mold accessories are small but very useful. With its precise guiding function and stable performance, it provides a strong guarantee for the precise positioning and efficient production of the mold. In the future development, with the continuous advancement of mold technology and the continuous expansion of application fields, the performance and types of guide pins will continue to upgrade and improve, contributing more to the precision production of the manufacturing industry.
