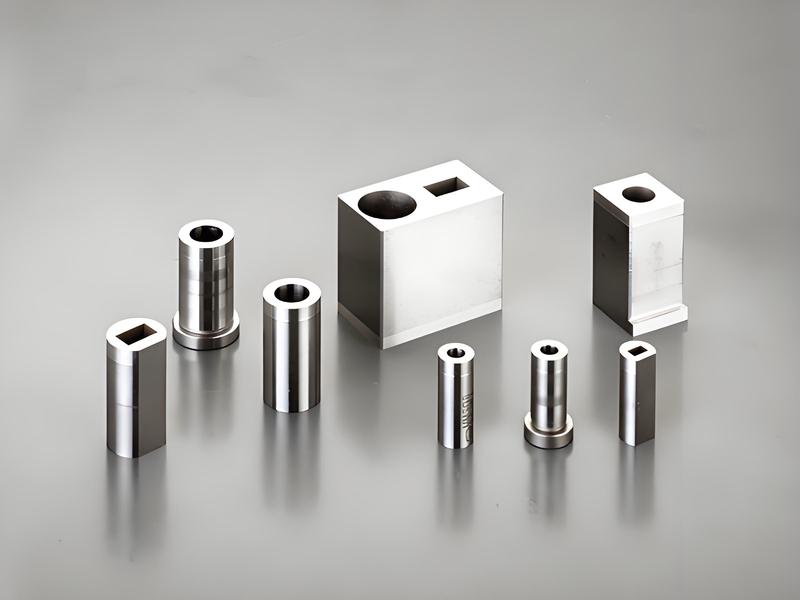

Punch guide sleeve: precise mold guidance, ensuring punch stability and improving molding quality

The punch guide sleeve in the mold accessories is a crucial component of the mold system, which is directly related to the accuracy, stability and service life of the mold. The main function of the punch guide sleeve is to provide precise guidance and support for the punch, ensuring that the punch can move according to the predetermined trajectory during the working process of the mold, thereby avoiding position deviation or damage and ensuring the molding quality of the product.

At the beginning of mold design, the selection and layout of the punch guide sleeves need to be carefully calculated and planned. Designers need to consider factors such as the working conditions of the mold, the shape and size of the punch, and the molding requirements of the product to determine the number, position, size and material of the guide sleeves. Appropriate guide sleeve design can not only improve the accuracy and stability of the mold, but also extend the service life of the mold and reduce production costs.

The manufacturing of the punch guide sleeve also requires high-precision processing equipment and technology. During the manufacturing process, it is necessary to strictly control the processing accuracy and surface quality to ensure that the matching clearance between the guide sleeve and the punch reaches the optimal state. At the same time, the guide sleeve also needs to undergo necessary heat treatment and surface treatment to improve its wear resistance, corrosion resistance and fatigue resistance.

During use, the punch guide sleeve will be affected by the impact and wear of the mold, causing its accuracy and performance to gradually decrease. Therefore, it is necessary to regularly inspect and maintain the guide sleeve, such as cleaning, lubricating, repairing or replacing severely worn parts. These maintenance tasks can not only maintain the good performance of the guide sleeve, but also detect and solve potential problems in time to avoid mold failure.

In summary, the punch guide sleeve in the mold accessories is an indispensable part of the mold system. It ensures the stable operation of the punch and the high-quality molding of the product by providing precise guidance and support. In the process of mold design and manufacturing, it is necessary to give enough attention and care to the punch guide sleeve to ensure the overall performance of the mold and the molding quality of the product.
